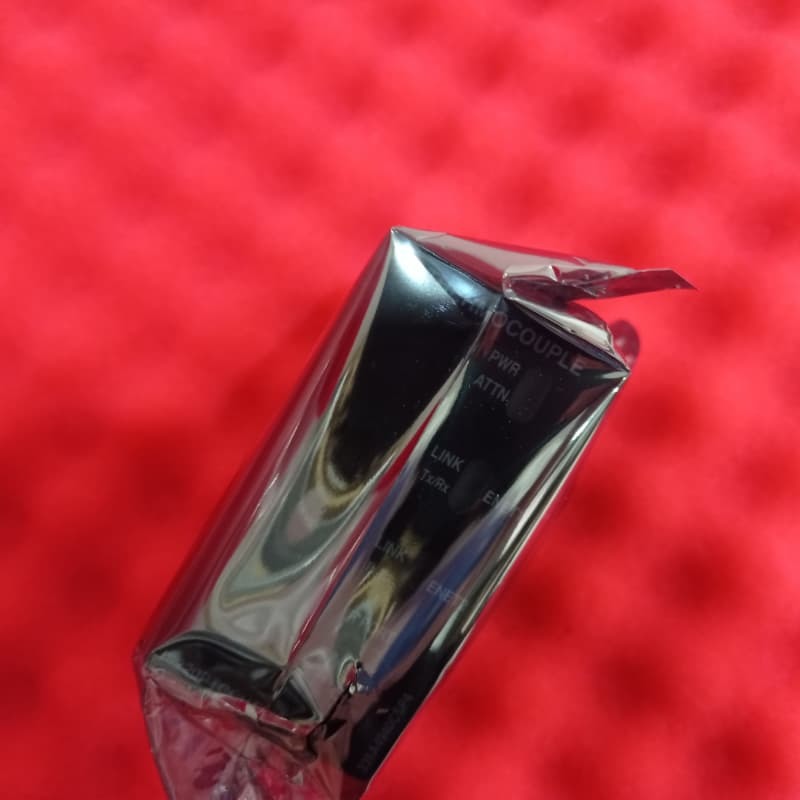

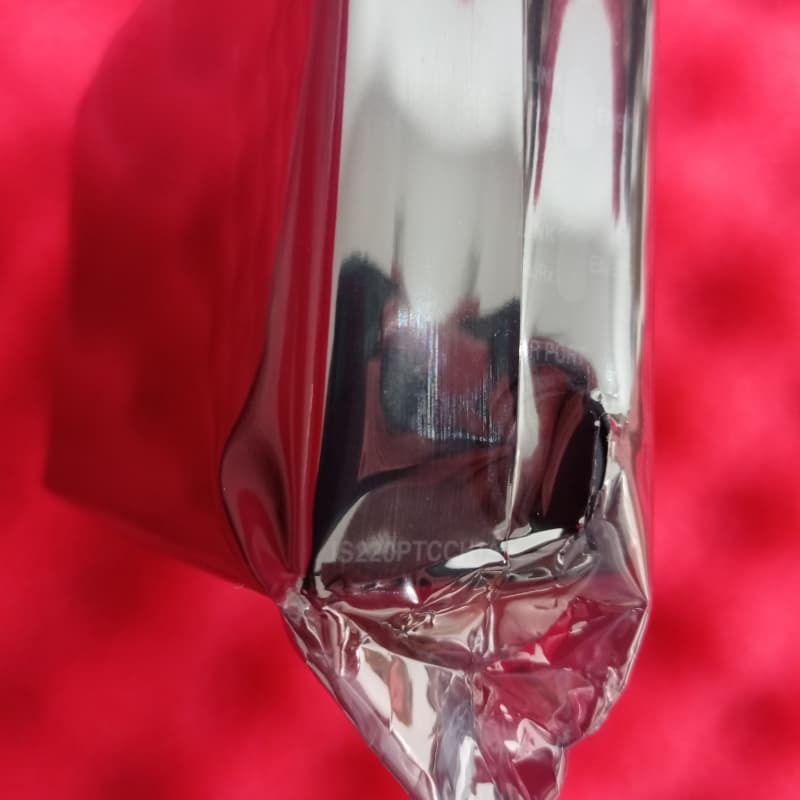

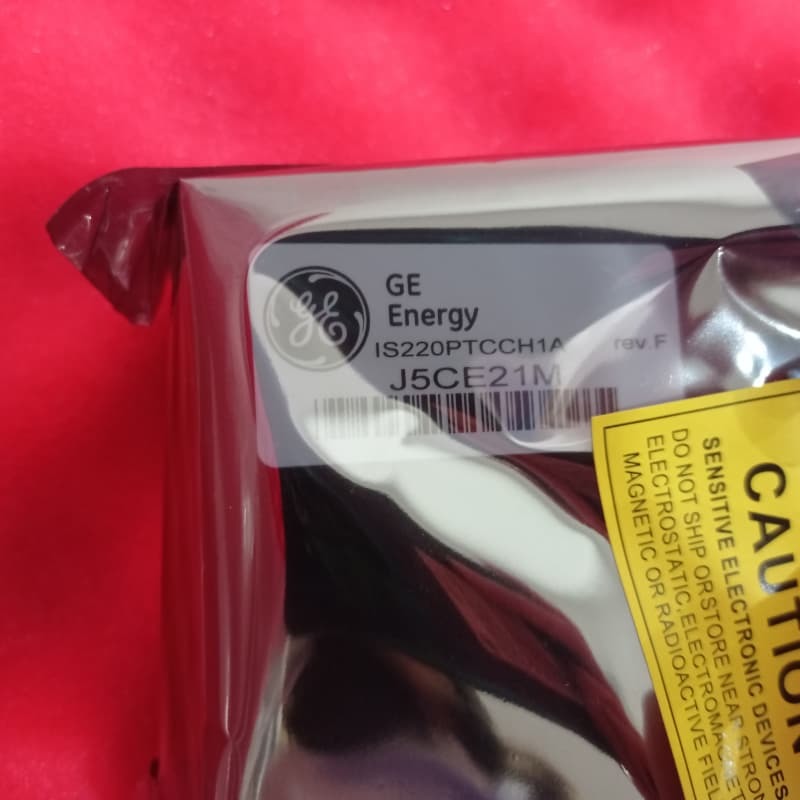

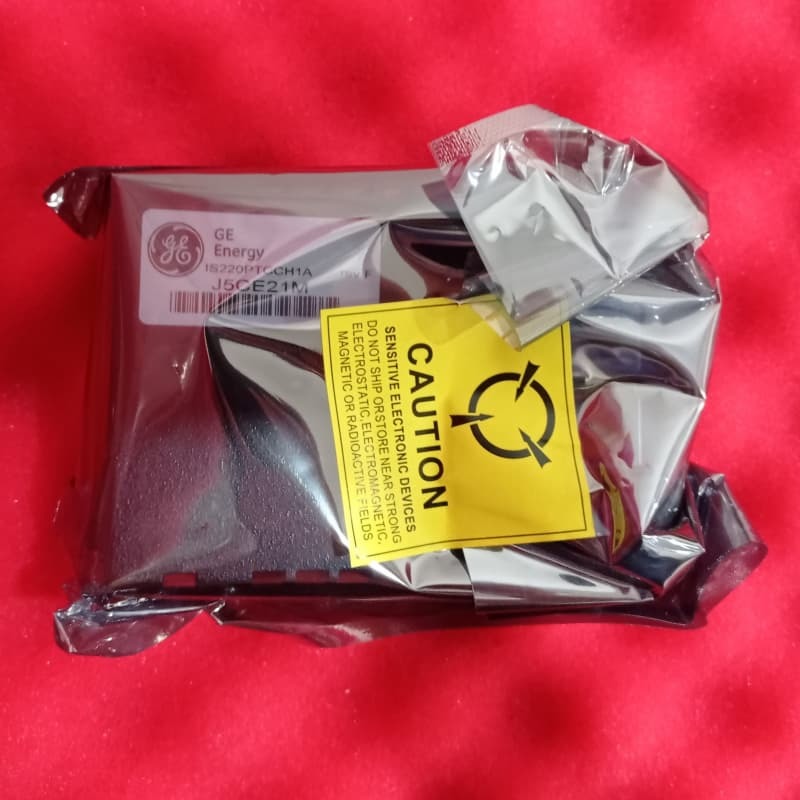

GE IS220PTCCH1A Thermocouple Input Module for Mark VIe Systems
| Place of Origin | USA |
|---|---|
| Nazwa handlowa | GE |
| Orzecznictwo | COO |
| Model Number | IS220PTCCH1A |
| Minimum Order Quantity | 1 |
| Cena | $7800 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xSzczegóły Produktu
| Name | GE IS220PTCCH1A Thermocouple Input Module | Product ID | IS220PTCCH1A |
|---|---|---|---|
| Series | Mark VI | Product Net Depth/Length | 330mm |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Podkreślić | GE Mark VIe thermocouple input module,turbine control thermocouple module,GE IS220PTCCH1A input module |
||
opis produktu
GE IS220PTCCH1A Thermocouple Input Module
| Attribute | Value |
|---|---|
| Name | GE IS220PTCCH1A Thermocouple Input Module |
| Product ID | IS220PTCCH1A |
| Series | Mark VI |
| Product Net Depth/Length | 330mm |
| Product Net Width | 100mm |
| Product Net Height | 200mm |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
Product Overview
The GE IS220PTCCH1A is a Thermocouple Input Module part of the Mark VIe Series, serving as an electrical interface between 1-2 I/O Ethernet networks and thermocouple input terminal boards in distributed control systems.
Key Features
- Thermocouple Support: Handles E, J, K, S, and T thermocouples and mV inputs, with up to 12 inputs per pack and scalability to 24 inputs with two packs.
- Flexible Configurations: Compatible with simplex, duplex, and TMR setups, adapting to redundancy needs in critical systems.
- Easy Installation: Plugs directly into terminal boards, secured via threaded studs to avoid connector stress; soft-start capability allows hot-plugging power without shutdown.
- Robust Communication: Dual 10/100 Ethernet ports and infrared serial port for local diagnostics.
- Performance & Diagnostics: High accuracy, 100 dB AC common-mode rejection, and self-tests for memory, hardware, and power supplies. Operates in -30°C to +65°C ambient conditions.
- Processor Features: Includes a high-speed processor with RAM/flash, hardware watchdog, ambient sensor, electronic ID verification, and programmable logic supporting the acquisition board.
Technical Specifications
The module integrates a common Mark VIe processor board and a thermocouple-specific acquisition board. In TMR configurations with TBTCH1B boards, three packs are used with three cold junctions but support 12 thermocouples. Communication occurs via dual RJ45 Ethernet ports, power via a three-pin connector, and outputs via a DC-37 pin connector to terminal boards. LEDs and an infrared port provide visual and serial diagnostics.
