GE IS220PVIBH1A Vibration Terminal Board for Mark VIe Turbine Control
| Place of Origin | USA |
|---|---|
| Nazwa handlowa | GE |
| Orzecznictwo | COO |
| Model Number | IS220PVIBH1A |
| Minimum Order Quantity | 1 |
| Cena | $10500 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xSzczegóły Produktu
| Name | GE IS220PVIBH1A Vibration Terminal Board (TVBA) | Product ID | IS220PVIBH1A |
|---|---|---|---|
| Series | Mark VIe | Product Net Width | 100mm |
| Product Net Height | 200mm | Product Net Depth/Length | 330mm |
| Product Net Weight | 2kg | Warranty | 1 Year |
| Podkreślić | GE Mark VIe vibration terminal board,turbine control vibration board,GE IS220PVIBH1A terminal board |
||
opis produktu
GE IS220PVIBH1A Vibration Terminal Board (TVBA)
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PVIBH1A Vibration Terminal Board (TVBA) |
| Product ID | IS220PVIBH1A |
| Series | Mark VIe |
| Dimensions (W×H×D) | 100mm × 200mm × 330mm |
| Weight | 2kg |
| Warranty | 1 Year |
Product Overview
The GE IS220PVIBH1A is a Vibration Monitor Pack part of the Mark VIe control system, integrating GE's legacy Speedtronic technology. It serves as an electrical interface between 1-2 Ethernet I/O networks and the TVBA vibration terminal board, monitoring turbine health via vibration and proximity data.
Key Features
- Vibration Sensing: 13 channels collect data from Proximitors, accelerometers, Velomitors, and seismics
- Specialized Channels: Channels 9-12 exclusively support Proximitors, while Channel 13 accepts proximity or Keyphasor signals
- Performance Metrics: Minimum 5V DC common mode voltage, -50 dB CMRR at 50/60 Hz
- Network Support: Dual 10/100 Ethernet ports for frame rate support
- Reliability Features: TMR and simplex backup integration, high-speed processor, watchdog timer, and temperature sensor
- Maintenance: Auto-reconfiguration for seamless replacement via ToolboxST

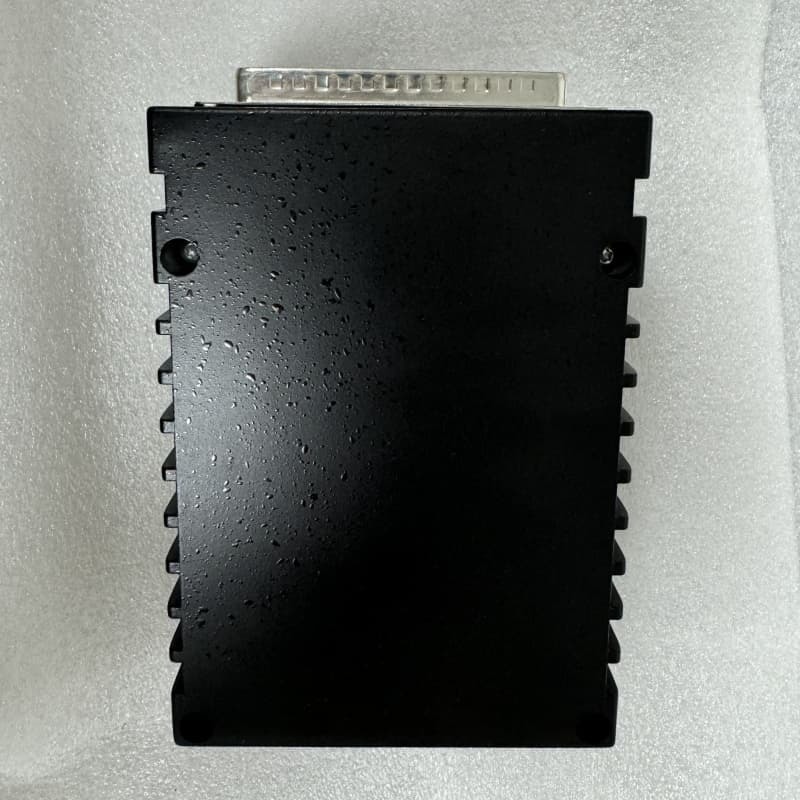

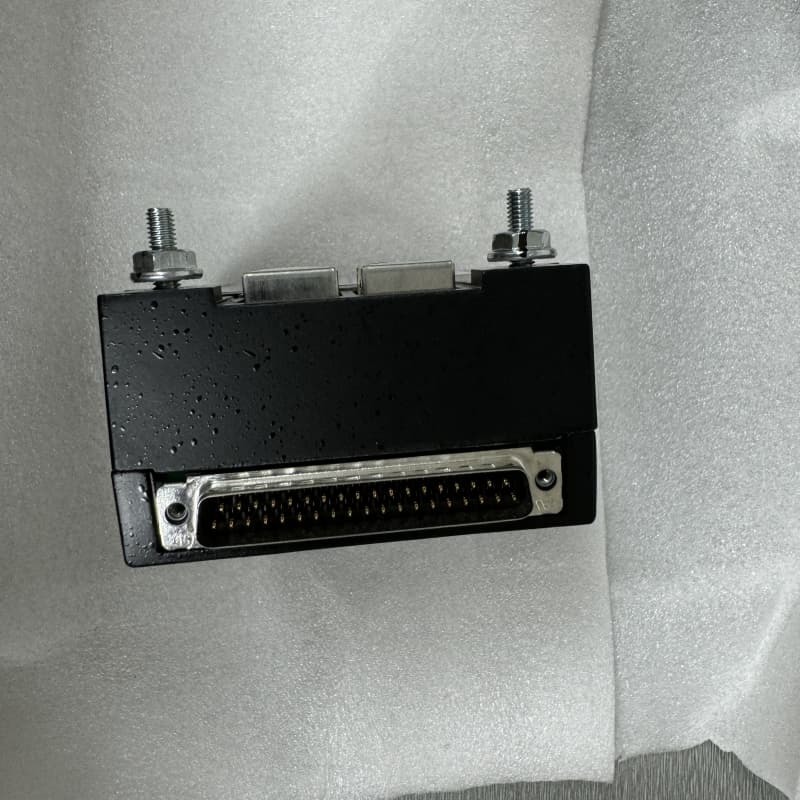

- Design: Compact with conformal coating for protection, mounts via threaded studs

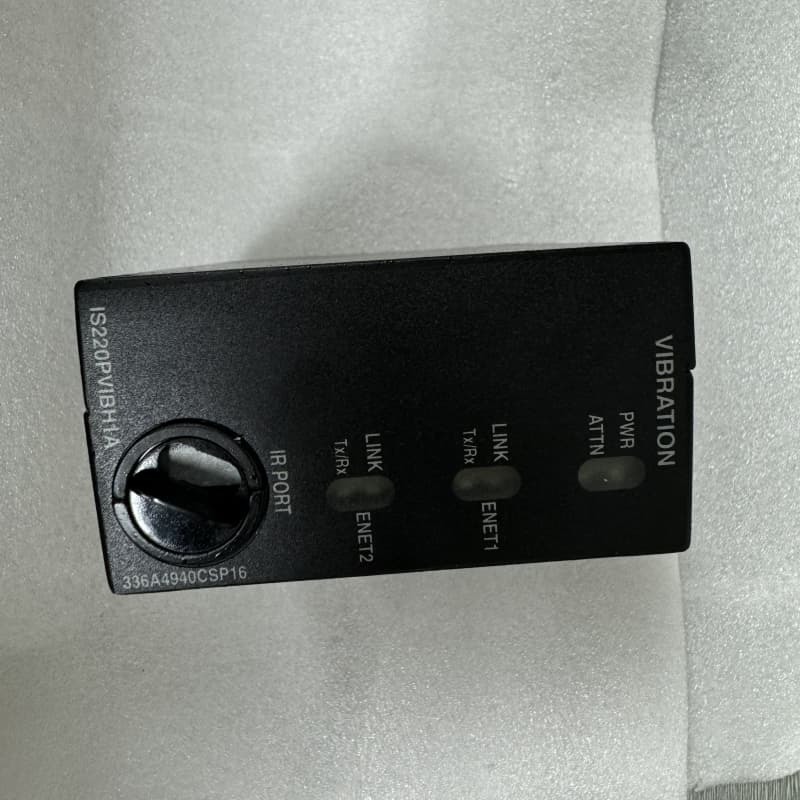

- Diagnostics: DC-37 pin connector and LED indicators for operational status monitoring
Applications & Ordering Information
The GE Mark VIe IS220PVIBH1A Vibration Terminal Board (TVBA) is manufactured in the USA with COO certification. Designed for gas/steam turbine systems, this industrial component features a compact form factor (100mm × 200mm × 330mm) and weighs 2kg.
Minimum Order Quantity: 1
Price: $999
Delivery Time: 5-7 days
Payment Terms: T/T
Warranty: 1 Year
Price: $999
Delivery Time: 5-7 days
Payment Terms: T/T
Warranty: 1 Year
