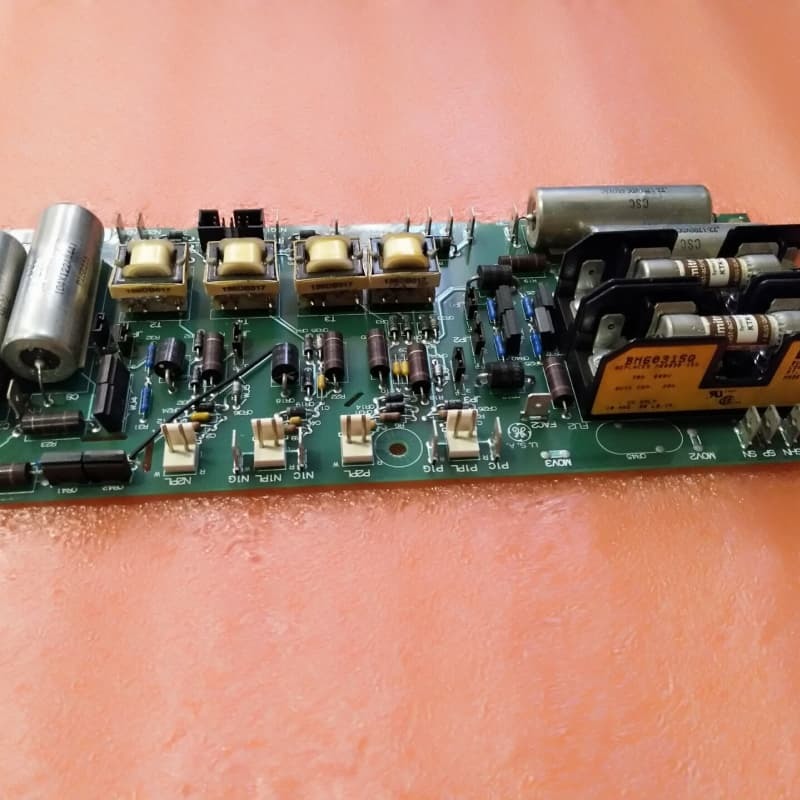

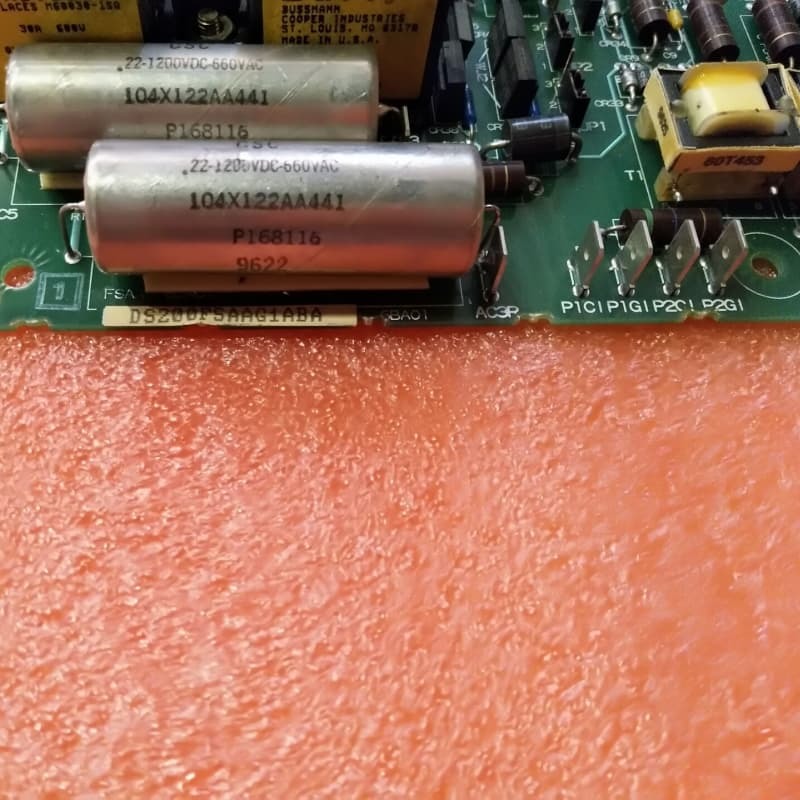

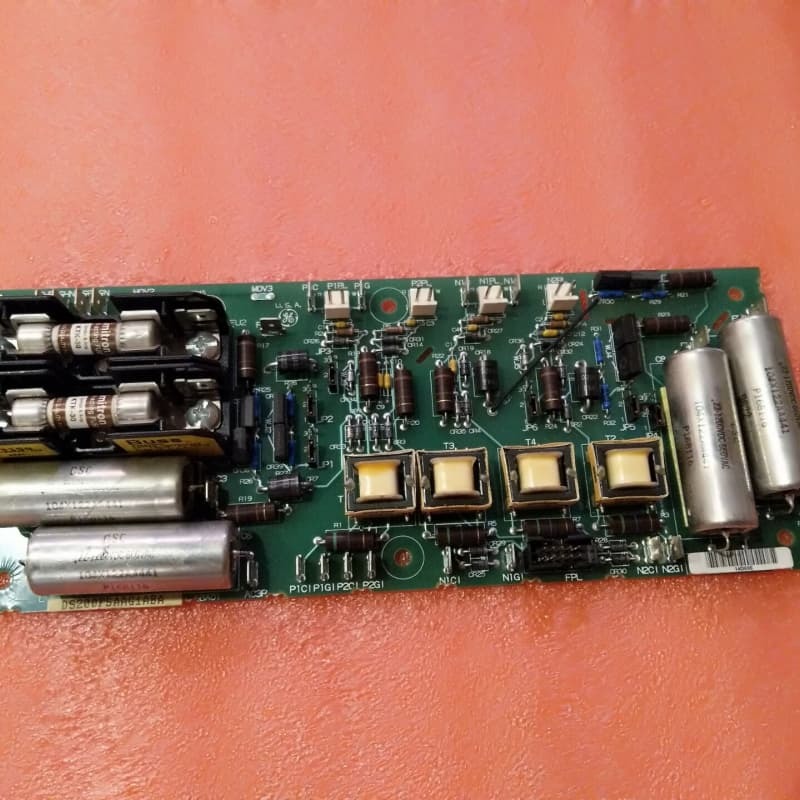

GE DS200FSAAG1ABA Field Supply Amplifier Board Mark V 330mm x 200mm

GE DS200FSAAG1ABA Field Supply Amplifier Board Mark V Ge Turbine Control

Product Details:

The GE DS200FSAAG1ABA is a Field Supply Gate Amplifier Board belonging to GE’s Mark V Series— a line of turbine control system components built with GE’s Speedtronic technology. It is a revised version of the original DS200FSAAG1 board, incorporating three significant product updates, and is designed to support critical functions in turbine control systems.

Physically, it features 5 jumpers, a 10-pin connector, 2 fuses, and multiple test points. As a static-sensitive component, it requires strict handling protocols: it ships in an anti-static sealed bag to be kept closed until installation, and installers must wear a wrist strap grounded to an unpainted metal surface to dissipate static. Walking with the board is also discouraged, as movement builds static.

Key Features:
Mark V Speedtronic Integration: Tailored for the Mark V Series, leveraging GE’s Speedtronic technology to support reliable operation in turbine control systems.

Revised Functionality: Builds on the original DS200FSAAG1 with three significant updates, enhancing performance or compatibility for field supply gate amplification in turbine setups.

Static-Safe Design: Requires anti-static handling (sealed bag storage, grounded wrist straps) to protect sensitive components from electrostatic damage—critical for industrial reliability.

Configurable & Diagnostic Hardware: 5 jumpers enable customization, while multiple test points facilitate troubleshooting, simplifying maintenance and alignment with system needs.

Industrial-Grade Components: Includes 2 fuses for circuit protection and a 10-pin connector for secure interfacing, ensuring durability in harsh turbine operating environments.
