GE MARK V DS200DCFBG1B DC Power Supply Feedback Board with Control-Level Power and Motor Field Power Integration
| Miejsce pochodzenia | USA |
|---|---|
| Nazwa handlowa | GE |
| Orzecznictwo | COO |
| Numer modelu | GE MARK przeciwko DS200DCFBG1B STRONY PRZEDPONOWANIA PRZEDPONOWANIA |
| Minimalne zamówienie | 1 |
| Cena | $2500 |
| Czas dostawy | 5-7 dni |
| Zasady płatności | T/t |
| Możliwość Supply | 999 |
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xSzczegóły Produktu
| Nazwa | GE MARK przeciwko DS200DCFBG1B STRONY PRZEDPONOWANIA PRZEDPONOWANIA | Identyfikator produktu | DS200DCFBG1B |
|---|---|---|---|
| Szereg | Mark v | Gwarancja | 1 rok |
| Głębokość/długość netto produktu | 330 mm | Wysokość netto produktu | 200 mm |
| Waga netto produktu | 2 kg | Szerokość sieci produktu | 100 mm |
| Podkreślić | Feedback Integration DC Power Supply Feedback Board,Control-Level Power Feedback Board,Motor Field Power Power Supply Board |
||
opis produktu

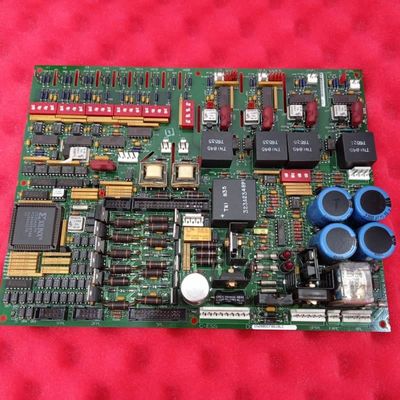

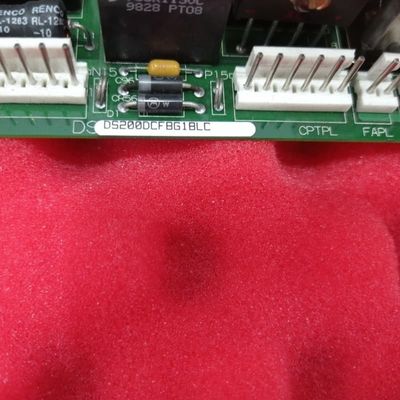

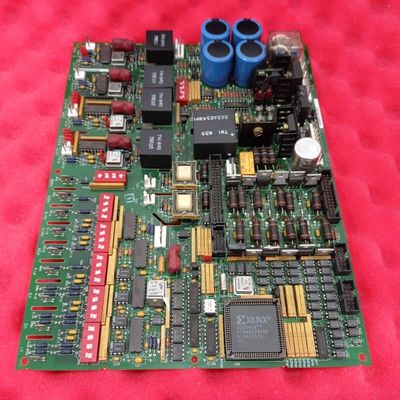

GE MARK V DS200DCFBG1B DC POWER SUPPLY FEEDBACK BOARD
Product Description:
The DS200DCFBG1B is a critical power supply board designed for the Mark V series, utilized in a range of turbine control systems including AC2000, DC2000, and EX2000. Its primary function is to supply control-level power and enclosure fan power within the drive system.
Key Features:
Comprehensive Power and Control Integration: The board integrates several vital circuits, making it a central component for power management and motor control. These include control-level power supplies, motor field power circuits, and driver circuits for SCR generators. It is responsible for monitoring key parameters such as armature current and voltage, motor field currents, and AC line current.
Communication and Signal Processing: The DS200DCFBG1B facilitates crucial communication with the system's SDCC or LDCC control boards. It provides an analog representation of the motor voltage, which can be actively scaled and modified using the onboard DIP switch SW6. A significant feature is its voltage-controlled oscillator, which converts input voltages into frequency signals for transmission to the control cards, enabling precise monitoring and feedback.
Configuration and Diagnostics: The board offers extensive configurability through twelve jumper (JP) settings and seven DIP switches (SW), allowing it to be tailored to specific system requirements. Diagnostic capabilities are robust, featuring two red LED indicators (CR51 and CR55) for DC regulator fuse status and a neon lamp (LT1) for AC line status. This provides clear visual fault identification for maintenance personnel.
Robust Protection and Interfacing: To ensure system reliability, the board incorporates three protective fuses to prevent power supply interruptions. For testing and monitoring, it provides five test points for measuring various voltage signals and board common. Furthermore, it is equipped with a substantial number of connectors—eighteen plug-style and nine stab-style—ensuring comprehensive interfacing with other components in the Mark V series.
